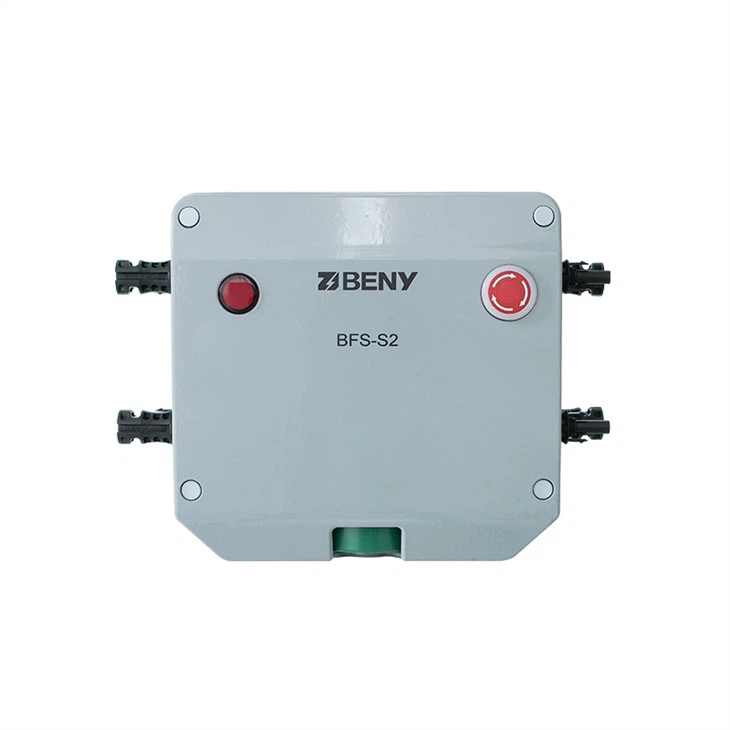

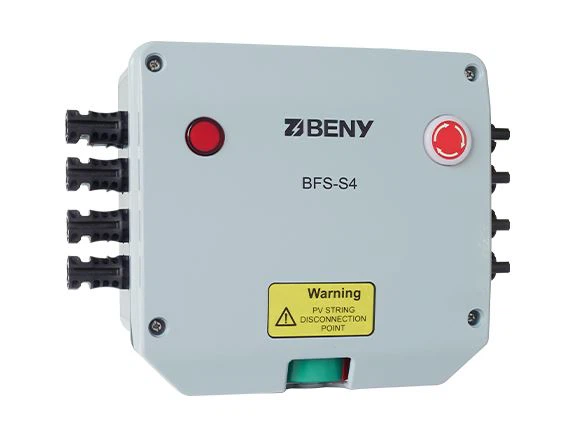

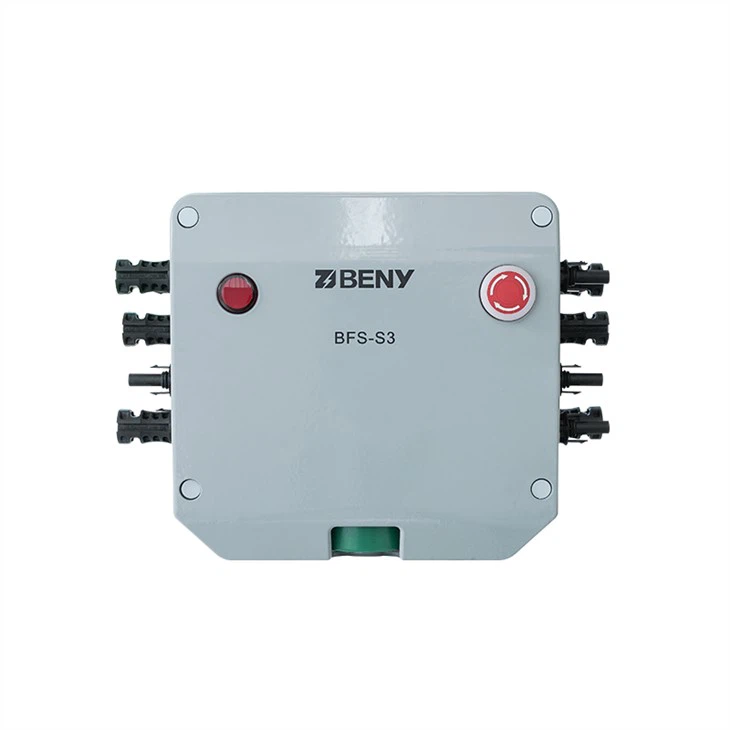

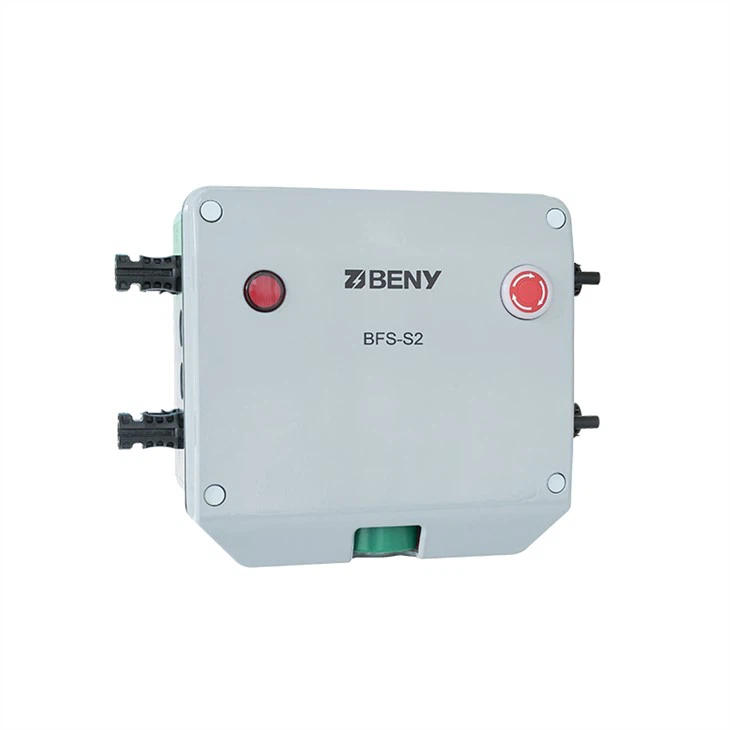

FireFighter Safety Switch for solar building
The BFS-S Series fire safety switch is a string level load break disconnect solution for solar rooftop fire protection. It should be installed on the rooftop or the place as closer to the panels.
Providing DC power mechanical, complete isolation and disconnection in case of a fire emergency on solar building. Protects firefighter from a solar electric shock.
With AC power trigger on the ground for easier and faster initiation.
Over-temperature reach 85 degree automatic isolation.
Top protection for solar rooftop from top company.
FEATURES
IP66 aluminum enclosure with breathing valve
UL508i listed and IEC PV2 DC switch
Developed for 25 years' warranty
Original MC4 connectors Plug and Play
Protection cover for rooftop installation is available
Models | BFS-S | ||
Max DC voltage IEC/EN 60947-3 | 1500V | 1350V | 800V-1000V |
Max DC current IEC/EN 60947-3 | 50A | 55A | 63A |
Models | BFS-S1 | BFS-S2 | BFS-S3 |
Number of Strings | 1 string | 2 strings | 3 strings |
Operating Voltage | 90Vac-260Vac | ||
Nominal Voltage | 230Vac | ||
Nominal Current | 30mA | ||
Start up Current | Average 100mA | ||
Switch on Action Current | Max 300mA | ||
Protection Degree | IP66 | ||
Storage temperature allowed between | -40 degree -85 degree | ||
Maximum operating temperature before automatic switch OFF | plus 85 degree | ||
Protection Level | Class II | ||
Number of operations without current | 9700 | ||
Number of operations under load with current | 300 | ||
